Technical Details Summary
-
Standard Specifications: ASTM A106 / ASME SA106 Grade B High-Temperature Service Specification
-
Manufacturing Scope: 100% Hot-Finished or Cold-Drawn Seamless Construction (SMLS)
-
Size & Schedule Capabilities: 1/2" NB to 24" OD; SCH 20, SCH 30, SCH 40, SCH STD, SCH 80, SCH 120, SCH 160, SCH XXS (Up to 4.000" wall thickness)
-
Quality & Verification: Supplied with EN 10204 3.1 Mill Test Certificates; Hydrostatic Tested & 100% NDT Inspected; Open for Third-Party Inspection (TPI)

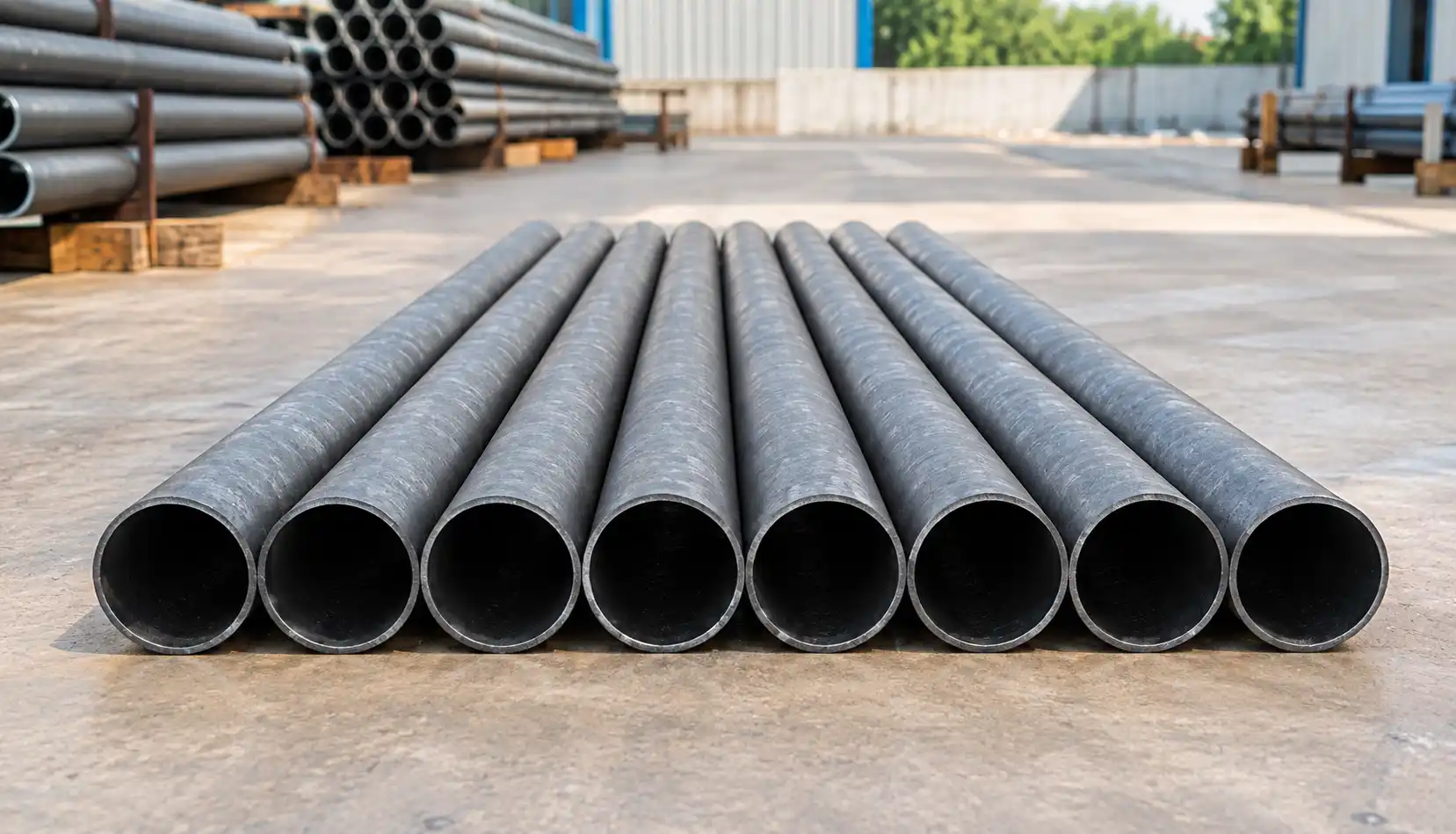

ASTM A106 Grade B Carbon Steel Seamless Pipes Overview
Trident Metal & Alloys is a premier ASTM A106 Grade B Carbon Steel Seamless Pipes Manufacturer in India, producing high-temperature piping for energy and refining operations. The ASTM A106 Grade B Seamless Pipe is specifically built for elevated-temperature service up to 800°F (427°C).
As a leading ASTM A106 Grade B Carbon Steel Seamless Pipes Supplier in India, we supply fully certified material made without any longitudinal or welded seams. This seamless build removes weld seam weaknesses, giving power plants and refineries a safe, reliable option for high-pressure operations.
We keep ready stock of A106 Grade B Carbon Steel Seamless Pipe from 1/2" NB to 24" outer diameter. All pipes come with clean factory beveling, cut lengths, and protective coatings. Every order includes EN 10204 3.1 test certificates and supports Third-Party Inspection.
For higher tensile strength in extreme boiler systems, you can also view our ASTM A333 Grade 6 Seamless Pipes.
Technical Specifications & Size Range
Manufacturing standards, dimensional capabilities, and end configuration options for ASTM A106 Grade B seamless pipes.
| Technical Parameter | Specification Limits & Manufacturing Capabilities |
|---|---|
| Standard Specifications | ASTM A106 / ASME SA106 (Grade B), ASME B36.10M |
| Manufacturing Process | 100% Seamless (Hot-Finished or Cold-Drawn) |
| Nominal Size Range | 1/2" NB to 24" OD (1/2" Nominal to 60" NB custom sizes available) |
| Wall Thickness Schedules | SCH 20, SCH 30, SCH 40, SCH STD, SCH 60, SCH 80, SCH XS, SCH 100, SCH 120, SCH 140, SCH 160, SCH XXS (Up to 4.000") |
| Length Profiles | Single Random Lengths (SRL), Double Random Lengths (DRL), Cut Lengths up to 16,000 mm |
| End Finish Profiles | Square Cut Plain Ends (PE), Beveled Ends (BE at 30° angle for site welding) |
| Protective Coatings | Bare Untreated, Black Varnish, Anti-Rust Light Oil, 3LPE, Fusion Bonded Epoxy (FBE) |
Chemical & Mechanical Properties of ASTM A106 Grade B
Chemical Composition of ASTM A106 Grade B (Max %)
| Chemical Element | ASTM A106 Grade B (Max %) |
|---|---|
| Carbon (C) | 0.30% |
| Manganese (Mn) | 0.29 – 1.06% |
| Phosphorus (P) | 0.035% |
| Sulfur (S) | 0.035% |
| Silicon (Si) | 0.10% min |
| Chromium (Cr) | 0.40% |
| Copper (Cu) | 0.40% |
| Molybdenum (Mo) | 0.15% |
| Nickel (Ni) | 0.40% |
| Vanadium (V) | 0.08% |
Mechanical Properties of ASTM A106 Grade B
| Mechanical Parameter | Requirement Limit (SI Units / Imperial Units) |
|---|---|
| Minimum Yield Strength | 240 MPa [35,000 psi] |
| Minimum Tensile Strength | 415 MPa [60,000 psi] |
| Minimum Elongation in 2 in. (50 mm) | 30% (Wall-dependent standard specimen minimum) |
| Hydrostatic Test Pressure | 100% Inspected (Calculated per ASME B31.1 / ASTM A106 limits) |
Engineering Advantages of A106 Grade B Seamless Pipe
Elimination of Weld Seam Failures
Solid billet piercing creates a continuous grain structure, preventing seam splitting or localized crevice attack under thermal cycling and pressure spikes.
Elevated Temperature Stability
Minimum 0.10% silicon content combined with controlled carbon ratios preserves structural yield strength and creep resistance during prolonged high-temperature steam exposure.
Superior Formability & Bendability
Precise cold drawing and hot finishing allow smooth field cold bending, flanging, and coiled bending without wall buckling or cracking.
Uniform Wall Stress Distribution
Tight concentric wall tolerances allow precise hoop stress calculations according to ASME B31.1 power piping code standards.
Primary Industrial Applications for ASTM A106 Gr B Pipe
High-Pressure Thermal Power Plants
Main steam transport lines, boiler superheaters, feed-water piping, and economizer loop assemblies operating at elevated temperatures.
Petrochemical & Oil Refineries
High-temperature distillation columns, catalytic cracker feed headers, and heat exchanger transfer piping.
Process Chemical Facilities
Process fluid lines carrying hot organic compounds, process steam, and high-pressure utility loops.
Gas Compression Stations
High-pressure discharge manifold systems and boiler house utility feed networks.
Grade Selection: ASTM A106 Grade B vs ASTM A53 Grade B
Comparative technical evaluation between high-temperature seamless service (A106 Grade B) and general utility piping (A53 Grade B).
| Engineering Parameter | ASTM A106 Grade B | ASTM A53 Grade B |
|---|---|---|
| Primary Service Intent | High-temperature, high-pressure seamless service | Ambient/low-temperature utility lines & structural frames |
| Allowed Manufacturing Types | 100% Seamless Only (Hot-finished / Cold-drawn) | Seamless (SMLS), ERW (Welded), & Furnace Butt Welded |
| Minimum Silicon Content | 0.10% Min (Required for heat resistance) | Silicon content is not explicitly specified |
| Minimum Tensile Strength | 415 MPa (60,000 psi) | 415 MPa (60,000 psi) |
| Minimum Yield Strength | 240 MPa (35,000 psi) | 240 MPa (35,000 psi) |
| Code Compliance Scope | Mandated for ASME B31.1 high-temperature power piping | Preferred for ASME B31.3 low-stress utility applications |
Regional Supply Across India
Western Region (Maharashtra & Gujarat)
We supply ASTM A106 Grade B Carbon Steel Seamless Pipes directly to power generation hubs, refineries, and EPC contractors across Mumbai, Pune, Thane, Navi Mumbai, Ahmedabad, Surat, Vadodara, Rajkot, Hazira, and Ankleshwar.
Northern & Central Region (NCR, Punjab & MP)
Direct distribution channels for boiler fabricators and industrial facilities across Delhi NCR, Faridabad, Gurgaon, Ghaziabad, Noida, Ludhiana, Indore, and Bhopal.
Southern Region (Tamil Nadu, Karnataka, Telangana & AP)
Regular dispatches of ASTM A106 Grade B Seamless Pipes to power plants, shipyards, and process plants in Chennai, Coimbatore, Bengaluru, Hyderabad, Visakhapatnam, and Tiruchirappalli.
Eastern Region (West Bengal, Odisha, Jharkhand & Chhattisgarh)
Bulk supply of heavy-wall seamless pipe for thermal stations and steel manufacturing complexes in Kolkata, Durgapur, Rourkela, Jamshedpur, Bhilai, and Paradip.
Quality Verification & Material Documentation
Trident Metal & Alloys subjects all ASTM A106 Grade B Carbon Steel Seamless Pipes to rigorous destructive and non-destructive quality checks prior to project dispatch.
Mill Test Certificates (MTC)
Fully compliant EN 10204 3.1 MTCs containing heat analysis, tensile curves, flattening reports, and hydrostatic pressure records.
Third-Party Verification
Open to 100% inspection by TUV, SGS, Bureau Veritas, DNV, or Lloyds to meet global project criteria.
Non-Destructive Testing
All seamless pipes undergo 100% full-body ultrasonic or electromagnetic inspection to guarantee zero structural defects.
All dispatches comply with dimensional tolerances established across our broader Carbon Steel Seamless Pipe Product Ranges.
Frequently Asked Questions
Q: What is an ASTM A106 Grade B Seamless Pipe used for?
A: It is designed for high-temperature and high-pressure applications, such as power plant steam lines, refineries, and chemical processing facilities.
Q: How does ASTM A106 Grade B differ from ASTM A53 Grade B?
A: A106 Grade B is strictly a seamless pipe made for high-heat service (up to 800°F), while A53 Grade B includes welded options and is mainly used for low-pressure utility lines.
Q: What size range is available for A106 Grade B Carbon Steel Seamless Pipe?
A: Standard sizes range from 1/2" NB to 24" outer diameter across various wall schedules including SCH 40, SCH 80, SCH 160, and SCH XXS.
Q: Can ASTM A106 Grade B pipes be bent or shaped in the field?
A: Yes, the steel has good ductility, making it suitable for cold bending, flanging, and coiling on job sites without cracking.
Q: What quality certificates come with the shipment?
A: Every order includes EN 10204 3.1 Mill Test Certificates detailing heat reports, strength testing, hydrostatic test results, and NDT inspection logs.
