Technical Details Summary
-
Manufacturing Processes: Hot-Finished Seamless (HFS), Cold-Drawn Seamless (CDS), Precision Cold-Finished.
-
Dimensional Range: 1/8" NB to 26" NB (Outer Diameters: 10.3 mm to 660.4 mm); Wall Thickness: SCH 20 through SCH XXS.
-
Core Specifications: ASTM A106 (Grades A, B, C), ASTM A333 (Grades 1, 6), ASTM A53 (Grade B Seamless), ASTM A179, ASTM A192, ASTM A210, DIN 1629 ST 52, DIN 2391 ST 52.
-
Surface Finishes & Coatings: Mill Varnish, Anti-Corrosion Black Varnish, Bare Untreated, 3LPE, 3LPP, and Fusion Bonded Epoxy (FBE).
-
Quality & Testing Standards: EN 10204 3.1 Mill Test Certification, 100% Ultrasonic Testing (UT), Hydrostatic Pressure Testing, Charpy V-Notch Impact Testing, and Third-Party Inspection (TPI).
Carbon Steel Seamless Pipes Technical Specifications
Detailed dimensional parameters, manufacturing methods, and standard supply capabilities offered by Trident Metal & Alloys.
| Specification Parameter | Manufacturing Range & Technical Capabilities |
|---|---|
| Nominal Bore (NB) Size | 1/8" NB to 26" NB (10.3 mm OD to 660.4 mm OD) |
| Wall Thickness Schedules | SCH 10, SCH 20, SCH 30, SCH STD, SCH 40, SCH 60, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, SCH XXS (Custom wall thicknesses up to 60 mm) |
| Primary Standards & Grades |
|
| Forming Methods | Hot-Finished Seamless (HFS) and Cold-Drawn Seamless (CDS) |
| Standard Lengths | Single Random (5–7 meters), Double Random (10–12 meters), Custom Cut Lengths up to 18 meters |
| End Configurations | Plain Ends (PE), Beveled Ends (BE per ASME B16.25), Square Cut, Threaded & Coupled |
| Protective Coatings | Rust-Preventative Light Oil, Black Varnish, External 3-Layer Polyethylene (3LPE), Internal FBE |
Explore Featured Carbon Seamless Pipes Grades
Direct product access to our most widely stocked carbon steel seamless piping grades for fast-track industrial delivery.
Carbon Steel Seamless Pipes Overview
Trident Metal & Alloys is a premier Carbon Steel Seamless Pipes Manufacturer in India, producing joint-free tubular products engineered without longitudinal welds for maximum pressure containment, uniform hoop stress, and reliable high-temperature performance.
As a trusted Carbon Steel Seamless Pipes Supplier in India, we stock heavy-wall and thin-wall schedules for critical power and refinery applications. For welded options and broader inventory, explore our main Carbon Steel Pipes category backed by EN 10204 3.1 certification.
Carbon Steel Seamless Pipe Grades & Supply Range
1. High-Temperature Carbon Seamless Pipes Grades
ASTM A106 Grade B: Industry standard for steam headers, refineries, and power generation operating up to 427°C (240 MPa yield). Explore our ASTM A106 Grade B Carbon Steel Seamless Pipes.
ASTM A106 Grade C: High-tensile seamless option (275 MPa yield) engineered for severe boiler loops and reduced wall thickness designs.
ASTM A106 Grade A: High-ductility grade optimized for field fabrication, close coiling, and tight-radius bending.
2. Low-Temperature Carbon Seamless Pipes Grades

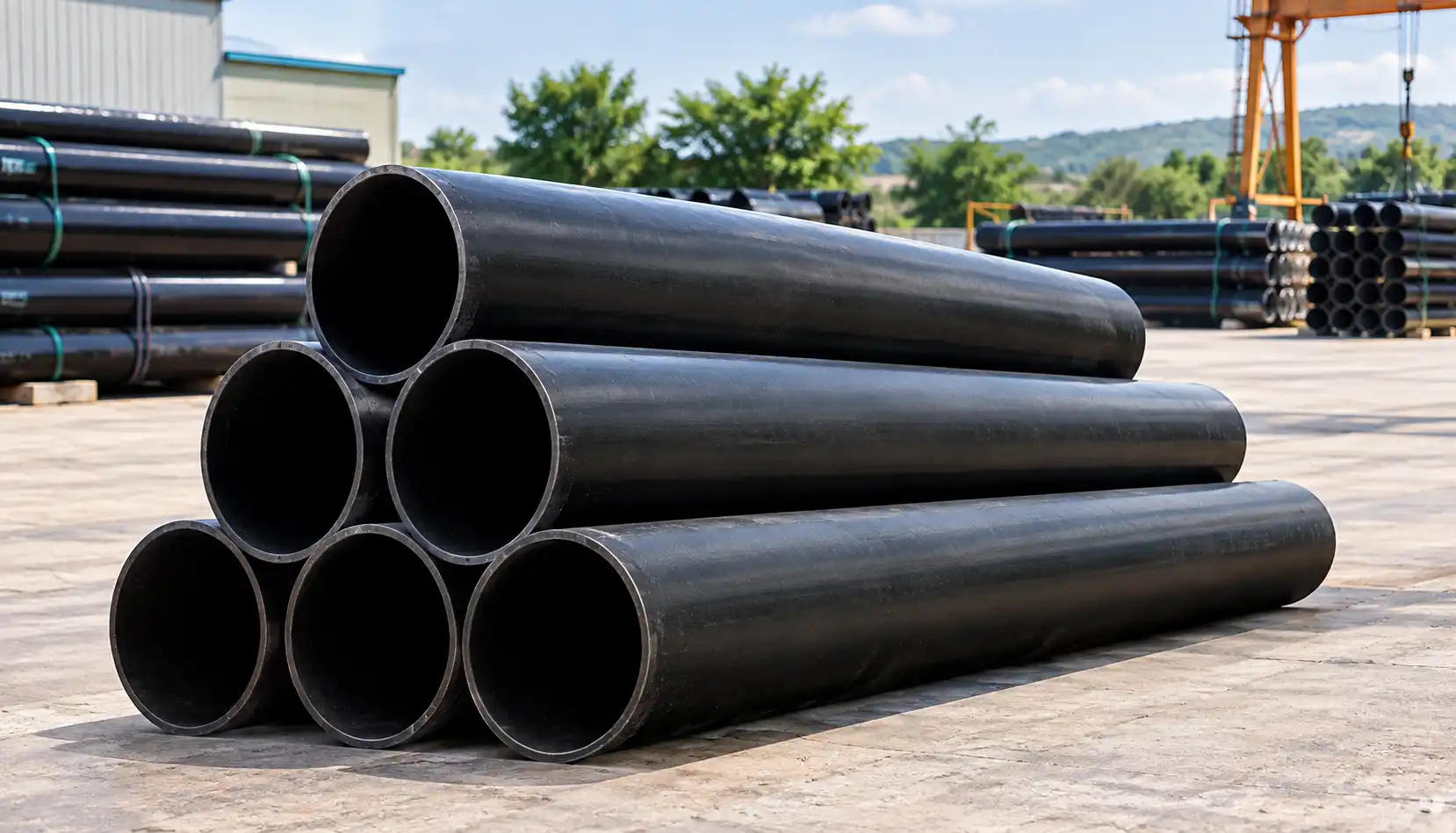

ASTM A333 Grade 6: Fine-grain seamless pipe Charpy impact tested at -45°C for LNG transmission and ethylene processing. Explore our ASTM A333 Grade 6 Carbon Steel Seamless Pipes.
ASTM A333 Grade 1: Low-carbon seamless grade for sub-zero liquid containment and arctic utility piping.
3. Carbon Steel Heat Exchanger & Boiler Tube Grades
ASTM A179: Cold-drawn seamless tubes with strict dimensional tolerances for condensers and heat exchangers.
ASTM A192: High-pressure seamless tubes engineered for superheaters and ASME Section I power boilers.
ASTM A210 Grade A1 & Grade C: Medium-carbon seamless tubes (255–275 MPa yield) for high-stress water-tube boilers and economizers.
4. Structural & Precision Carbon Steel Pipe Grades

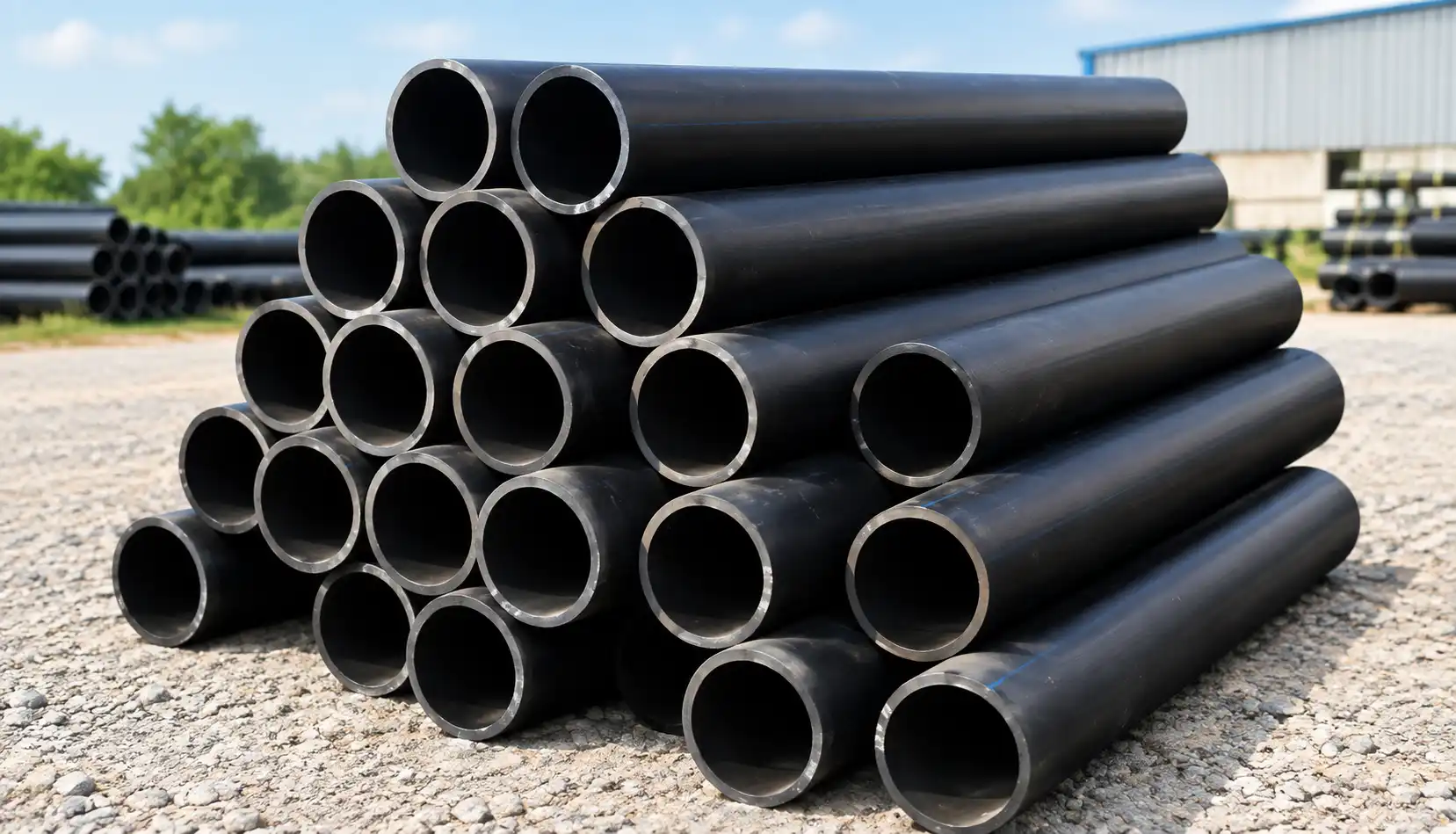

DIN 1629 ST 52: Hot-finished structural pipe (355 MPa yield) for heavy equipment framing, columns, and plant infrastructure. View our Carbon Steel ST 52 Seamless Pipes.
DIN 2391 ST 52: Precision cold-drawn tube with smooth wall tolerances for hydraulic cylinders, rams, and mechanical machinery.
Key Advantages of Seamless vs. Welded Steel Pipes
Uniform Hoop Stress Containment
Eliminates longitudinal weld seams entirely, preventing stress concentration points and ensuring equal circumferential strength throughout the pipe wall.
Higher Internal Operating Pressure Limits
Seamless construction permits up to 20% higher design working pressures than welded equivalents of identical dimension and material grade, per ASME B31.3 piping codes.
Superior Ovality & Concentricity
Precision cold-drawn manufacturing ensures tight wall-thickness tolerances, simplifying pipe alignment, orbital field welding, and mechanical threading.
Enhanced Corrosion Uniformity
Without weld heat-affected zones (HAZ), seamless pipes eliminate localized galvanic corrosion and preferential weld attack in sour or acidic processing fluids.
Quality Verification & Testing Standards
Every shipment dispatched by Trident Metal & Alloys undergoes rigorous quality control inspection to meet exact project engineering standards across our entire Carbon & Alloy Steel Pipes portfolio:
Mill Test Certificates (MTC)
Fully compliant with EN 10204 3.1, providing detailed chemical heat analysis, mechanical tensile/yield data, hardness profiles, and heat treatment records.
Hydrostatic & Non-Destructive Testing (NDT)
100% testing via hydrostatic pressure holds or continuous Ultrasonic Testing (UT) / Eddy Current inspection to guarantee complete cross-sectional integrity.
Low-Temperature Impact Verification
Charpy V-notch impact testing conducted per ASTM A333 requirements to verify lateral expansion and energy absorption at sub-zero temperatures.
Third-Party Inspection (TPI)
Third-party inspection agency coordination available with TUV, SGS, Bureau Veritas, DNV, and Lloyd's Register.
